OE4201 Current Source
100kHz Current Source
Voltage Controlled Current Source
1 Hz to 100 kHz frequency
2mA/V and 200mA/V gain
Input range 5mVrms to 0.5Vrms
Current from 10 uA to 100 mA


Introduction
Performance
Data download
Related videos

Product Overview

    The OE4201 is a floating ground-isolated voltage-controlled current source device, which can provide a current source for other instrumentation.The OE4201 outputs AC current with a gain of 2mA/V and 200mA/V in two steps, and a frequency of 1Hz-100kHz. As a current source instrument, the OE4201 has high accuracy, good stability, the output is basically independent of the load and external voltage changes, strong anti-interference ability, and fast response time. It is suitable for use with sensitive AC instruments such as lock-in amplifiers, providing a simple method of generating precision current from AC voltage. Moreover, the OE4201 adopts a standard chassis with a compact, beautiful and reliable internal structure and flexible switching action, which makes the instrument easy to use, adjust and maintain.



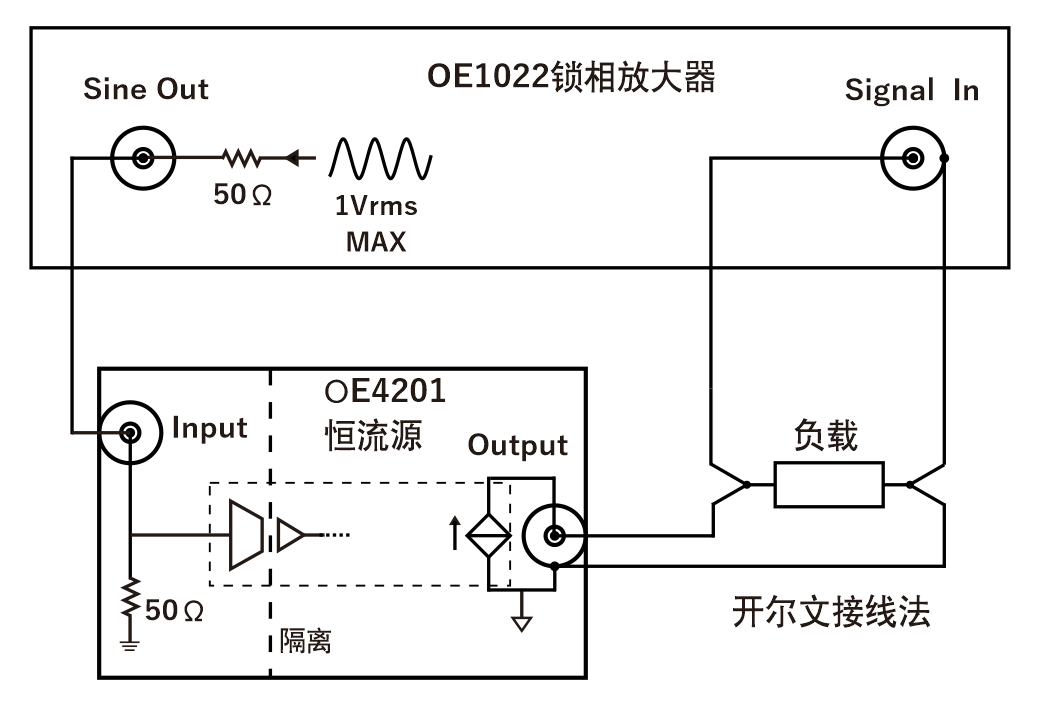

Block Diagram


Input

    Input voltage range                          0.005Vrms-0.5Vrms

    Input Frequency Range                     1Hz-100kHz

    Input Impedance                               50Ω

    Input Peak Voltage                            ±0.707V max


OUTPUT

    Output Mode                                     Single-ended

    Output Current RMS                          0.01mA-100mA

    Output Load                                       0.1Ω-100Ω

    Rated Output Voltage                        ≤1Vrms

    Maximum Output Voltage                 ±9V (open circuit)

    Input-Output Gain                              2mA/V or 200mA/V


Accuracy

Accuracy                                                 2% (typical)

                                                               5% (maximum value)

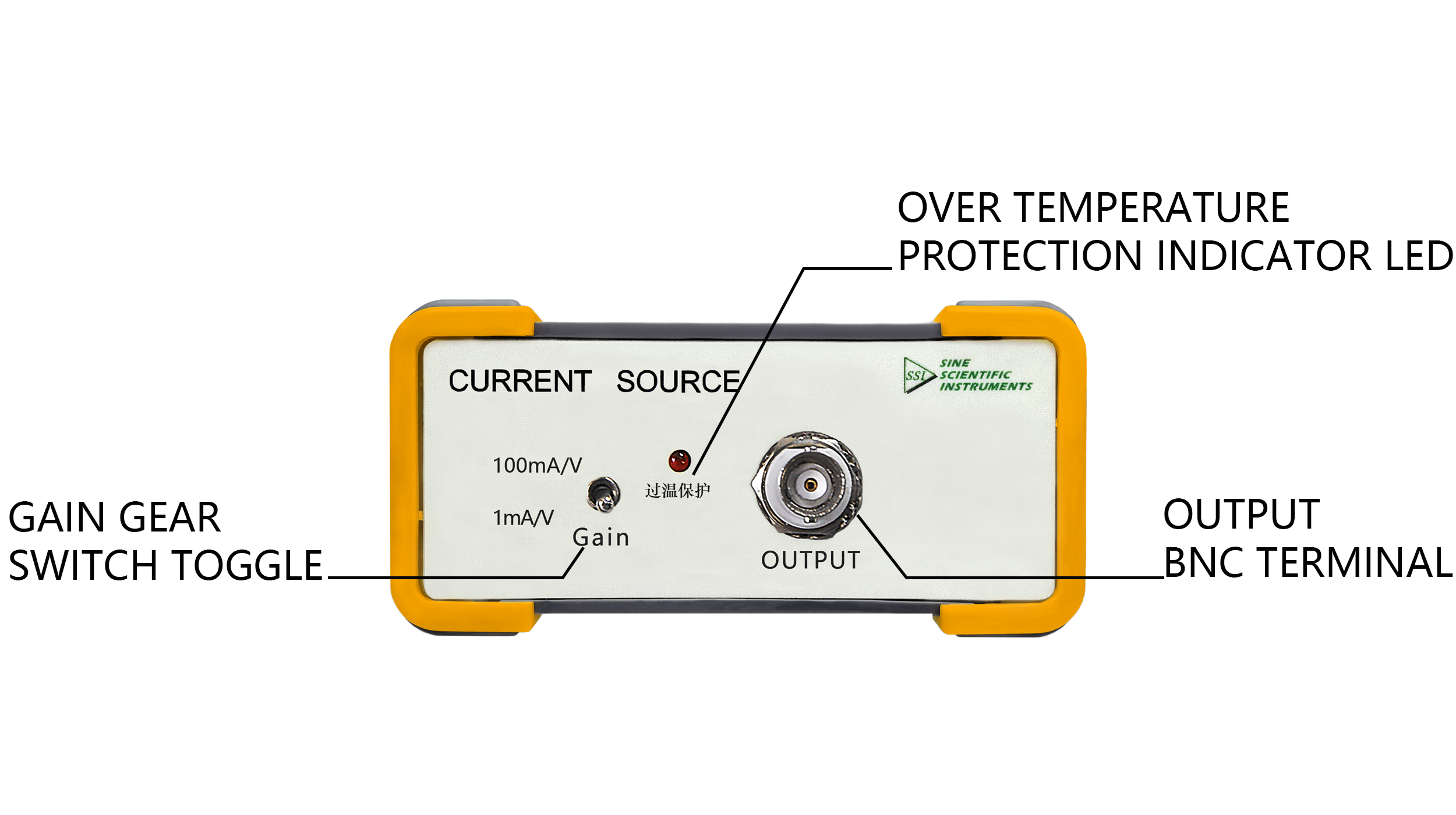

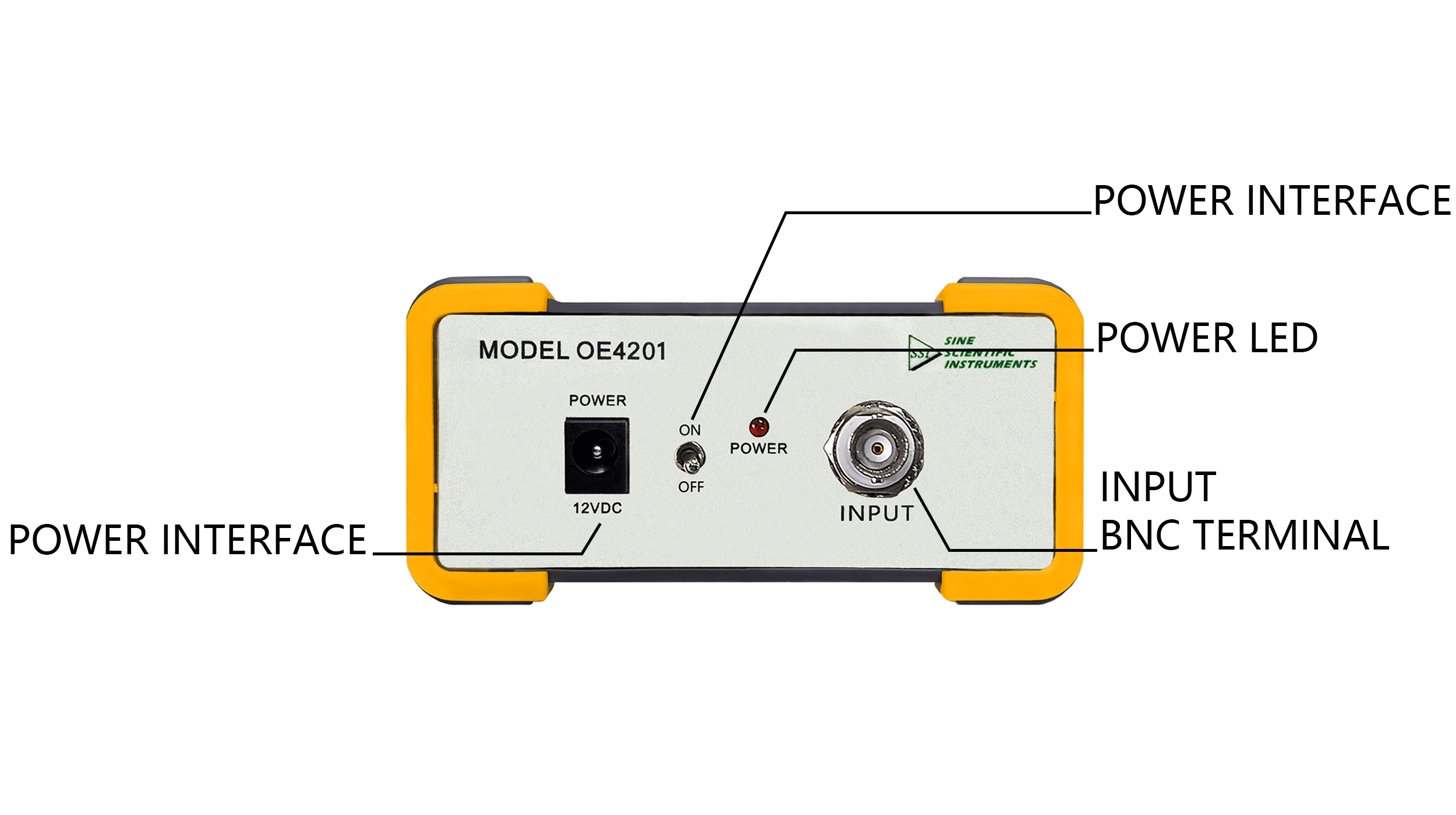

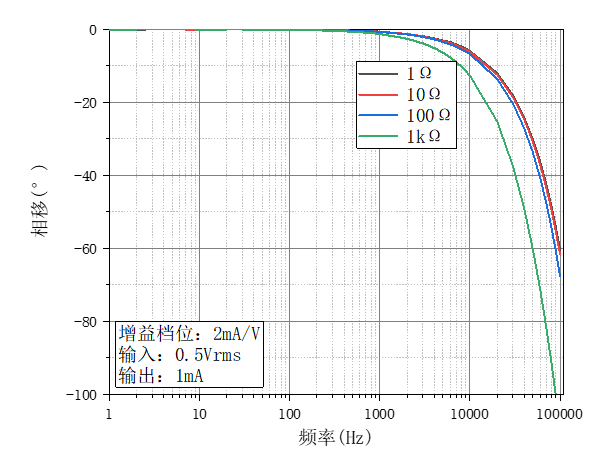

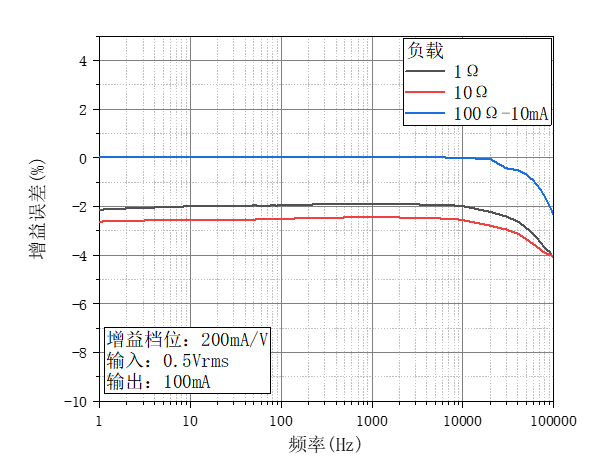

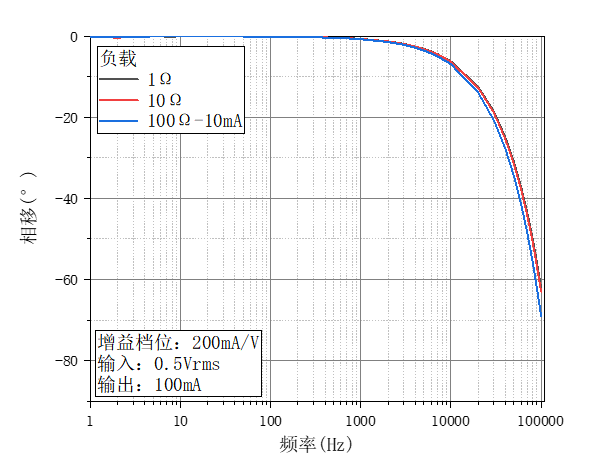

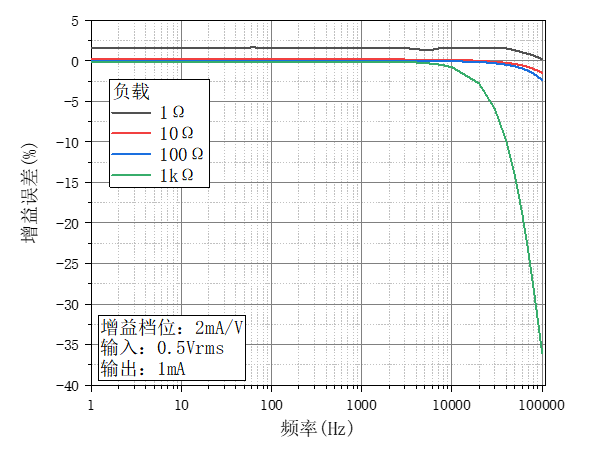

Amplitude-Frequency and Phase-Frequency Characteristic Curves
